Acoustic Noise Barrier Walls Profile Making machine
Highway Sound Barrier Walls Panel Machine- Acoustic Noise Barrier Walls Profile Making machineis designed for making the wall panel profiles by rolling forming machine working principle for highway. AIL Sound Walls are the smart choice to block unwanted noise from road traffic, railways, generators or cooling systems. These absorptive or reflective sound barrier wall systems are easy to install with local crews and light equipment. Available in a variety of attractive colors and textures, these low-maintenance noise barrier walls are impervious to rain, snow and ice, and will not rust, rot or stain. Here I will take the following drawing profile for example, to show how the machine is designed.
Acoustic Noise Barrier Walls Profileactually is made by two parts, one is the surface panel to absorb the sound and another side is the down panel without any holes. And use the connection bar to make them together. Here are some application usage pictures of the barrier panels for your reference:
Highway Sound Barrier Walls Panel Machine
The noise barrier wall profile making machine is composed by the following elements: the punching production line and the main rolling forming machine line.

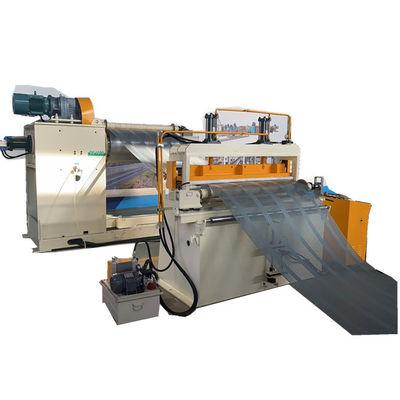

Hydraulic decoiler with NC coil feeder leveling --> Punching Machine- recoiler with damping system
As to the punching line:

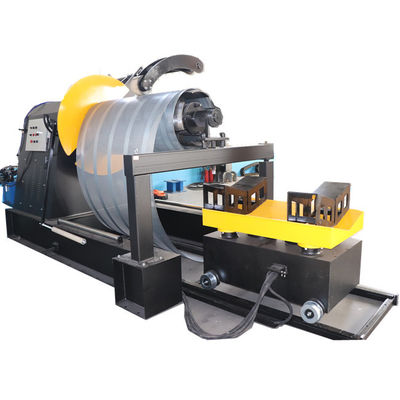

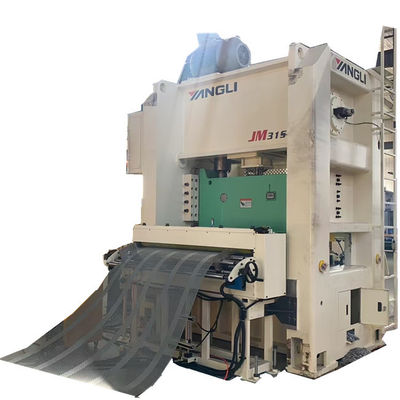

The decoiler could be automatic or manual one or 5 ton or 10 ton with loading car or without. As to the punching machine, you can choose high speed or normal speed. Here are some production line pictures for your reference.

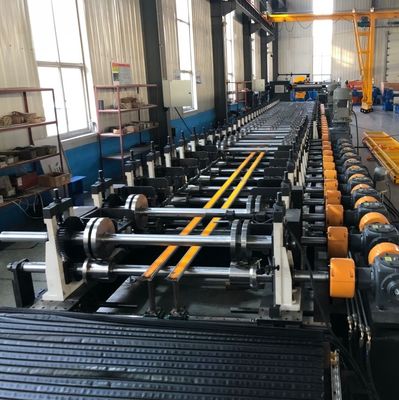

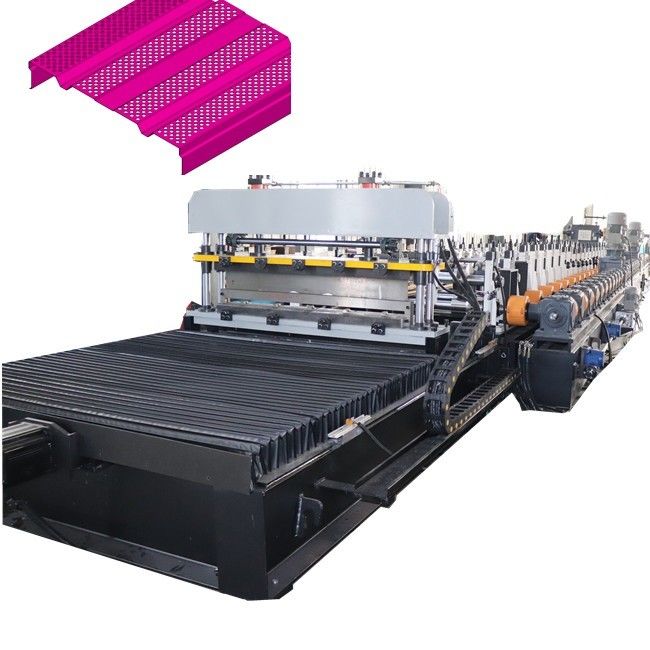

As to the main rolling forming machine to make Sound Barrier Walls Panel:
1. For this sound barrier panel machine, the punching width, hole quantity are adjustable.
2. The panel width is adjustable.
3. The transmission we use gearbox.
4. High speed running, the rolling speed can reach 15 to 25 meter per minute.
5. The machine we use molding frame thickness is around 35mm thick.
6. The roller material is Gcr12Mov.
7. Servo motor driven, speed more faster.
8. Servo tracking shearing system.
9. Siemens PLC and motor.
10. SKF bearing for long time to use.
Here is the machine working video for your reference:
